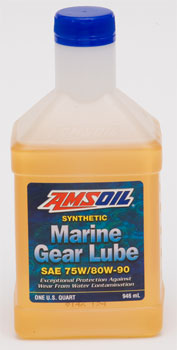

AMSOIL Synthetic Marine
Gear Lube SAE 75W/80W-90 (AGM)
AMSOIL Synthetic Marine Gear Lube is a high
Performance lubricant engineered to meet the demands of
marine applications. AMSOIL Universal Synthetic Marine
Gear Lube provides:
- Excellent Gear and Bearing Protection even
when contaminated with 10% water
- Reduced Friction and Wear
- Rust and Corrosion Protection
- Long Seal Life
- Superior Foam Prevention
See Pricing Information or Place an
Order
Package sizes include:
13-oz. Tube
13-oz. Tubes (case of 6)
1-Quart Bottle
1-Quart Bottles (case of 12)
5-Gallon Pail
16-Gallon Keg
30-Gallon Drum
55-Gallon Drum
PRODUCT
DESCRIPTION AMSOIL Universal Synthetic
Marine Gear Lube is an exclusive AMSOIL formulation of
synthetic base oils and high performance additives that address
the specific concerns of marine applications. It is extreme
pressure (EP) additive fortified for superior protection of
fast accelerating, high torque/horsepower engines. It protects
against shock loading from cavitation of heavily loaded
engines.
AMSOIL Universal Synthetic Marine Gear Lube is water
resistant. It maintains extreme pressure protection even when
contaminated with as much as 10% water. It promotes longer seal
life, preventing excessive water leakage. AMSOIL Universal
Synthetic Marine Gear Lube protects against rust and is
compatible with aluminum, copper and brass alloys.
APPLICATIONS AMSOIL Universal
Synthetic Marine Gear Lube is recommended for fresh and salt
water applications requiring either 75W-90 or 80W-90 viscosity
grade and meeting either API GL-4 or GL-5 performance
standards.
Examples of AMSOIL Universal Synthetic Marine Gear Lube
applications include:
|
Outboard Lower
Units:
Mercury/Mariner
Johnson/Evinrude
Bombardier
Honda
Yamaha
Suzuki
Force/US Marine
Nissan
Tohatsu
Harbormaster Marine Outboard Drives
Sears Gamefisher and Seagull
Sterndrives:
Mercruiser-Bravo
OMC/Bombardier
Volvo-Penta
Yanmar
Konrad
Marine Drive Systems
|
V-Drives:
Casale &
Menkens
Bow & Tunnel
Thrusters:
Harbormaster
Marine
Marine
Transmissions:
ZF Marine
Transmission
|
Marine gear oils operate in environments subject to water
contamination. The chart below demonstrates the ability of
AMSOIL Universal Synthetic Marine Gear Lube to maintain
designed qualities such as extreme pressure/anti-wear
performance and resistance to foaming, even when subjected to
10% water contamination.
The Falex Procedure is measurement of a gear lube's extreme
pressure and anti-wear properties. A high value in the Falex
Extreme Pressure Test relates to extra extreme pressure
protection. AMSOIL Universal Synthetic Marine Gear Lube is not
affected by water and provides 50% more extreme pressure
protection for long gear and bearing life.
The presence of foam in a lubricant disrupts oil film and
promotes wear. Water contamination can increase the likelihood
of foaming. Industry standard testing demonstrates zero foam in
both new and water-contaminated AMSOIL Universal Synthetic
Marine Gear Lube. Other conventional gear lubes can foam when
mixed with water, as seen in the graph.
|
Extreme Pressure and Foam Stability
Testing
|
|
Test
|
AMSOIL Universal Synthetic
Marine Gear Lube (AGM)
|
Conventional Gear Lube
(A)
|
Conventional Gear Lube
(B)
|
FALEX Extreme
Pressure Load Test B (LbF)
(ASTM D-3233B) |
|
no
water
|
with 10%
water
|
|
1500
|
1500
|
|
|
no
water
|
with 10%
water
|
|
1100
|
1000
|
|
|
no
water
|
with 10%
water
|
|
1000
|
1000
|
|
|
Foam Stability
(ASTM D-892)
Sequence I
Sequence II
Sequence III
|
|
no
water
|
with 10%
water
|
|
0/0
0/0
0/0
|
0/0
0/0
0/0
|
|
|
no
water
|
with 10%
water
|
|
0/0
0/0
0/0
|
0/0
0/0
0/0
|
|
|
no
water
|
with 10%
water
|
|
0/0
0/0
0/0
|
375
/290
590/0
380/305
|
|
AMSOIL Universal Synthetic Marine gear Lube is compatible
with other commercially available conventional and synthetic
marine gear lubes.
Follow manufacturers recommended service intervals.
It is generally a good idea to change gear lube at the end
of the season prior to storage.

|
